Eco Care Shower handrail,
420 x 750 mm, White
€152.00*
*Prices excl. VAT
Article number: 1484342019
Downloads
Technical Specifications

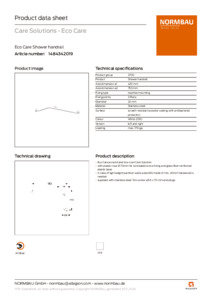

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Overall download
ZIP file
- Eco Care as solid and low-cost Care Solution
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- for the use of rose gaskets 2053601/2053610 geeignet
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product group : 3700
- Axle dimension a1 : 420 mm
- Axle dimension a2 : 750 mm
- Diameter : 32 mm
- Fixing points : 3 St.
- Fixing type : rosettes mounting
- Material : Stainless steel
- Surface : scratch-resistant powder coating with antibacterial protection
- Version : left and right
- Colour : White
- Loading : max. 175 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
