Eco Care Shower curtain rail,
with curtain rings and ceiling support, L-shaped, 900 x 900 mm, White
€186.00*
*Prices excl. VAT
Article number: 1381090019
Downloads
Technical Specifications

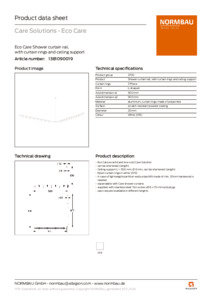

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Eco Care as solid and low-cost Care Solution
- can be shortened (length)
- Ceiling support L = 500 mm, Ø 6 mm, can be shortened (length)
- Nylon curtain rings in white (019)
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with Care shower curtains
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- upon request available in different lenghts
- Product category : Shower curtain rail
- Product version : with curtain rings and ceiling support
- Product group : 3700
- Axle dimension a1 : 900 mm
- Axle dimension a2 : 900 mm
- Diameter : 20 mm
- Form : L-shaped
- Curtain rings : 17 St.
- Material : aluminium
- Material addition : curtain rings made of polyamide
- Surface : scratch-resistant powder coating
- Colour : White
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
normbau@allegion.com
