Eco Care Lift-up shower seat,
with support feet, 473 x 407 x 550 mm, White
€187.00*
*Prices excl. VAT
Article number: 1844440019
Downloads
Technical Specifications

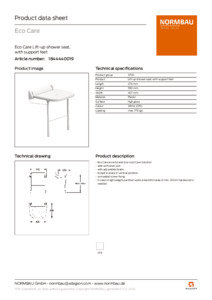

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Eco Care as solid and low-cost Care Solution
- seat with drain slot
- with adjustable brake
- locked in place in vertical position
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up shower seat
- Product version : with support feet
- Product group : 3700
- Length : 473 mm
- Width : 407 mm
- Height : 550 mm
- Material : Plastic
- Surface : high gloss
- Colour : White
- Loading : max. 175 kg
