Eco Care Grab rail,
135°, left, 400 x 400 mm, White
€89.00*
*Prices excl. VAT
Article number: 1464330019
Downloads
Technical Specifications

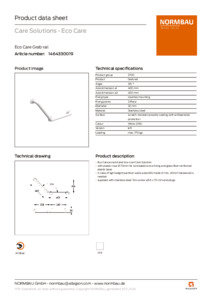

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Eco Care as solid and low-cost Care Solution
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- for the use of rose gaskets 2053601/2053610 geeignet
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Grab rail
- Product group : 3700
- Axle dimension a1 : 400 mm
- Axle dimension a3 : 400 mm
- Diameter : 32 mm
- Fixing points : 3 St.
- Angle : 135 °
- Fixing type : rosettes mounting
- Material : Stainless steel
- Surface : scratch-resistant powder coating with antibacterial protection
- Version : left
- Colour : White
- Loading : max. 175 kg
