Eco Care Grab bar, 300 mm, White

€41.75*

*Prices excl. VAT

Article number: 1453230019
  • Eco Care as solid and low-cost Care Solution
  • with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • for the use of rose gaskets 2053601/2053610 geeignet
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
  • Product category : Grab bar
  • Product group : 3700
  • Axle dimension a1 : 300 mm
  • Diameter : 32 mm
  • Fixing points : 2 St.
  • Angle : 0 °
  • Fixing type : rosettes mounting
  • Material : stainless steel, material No. 1.4301 (A2, AISI 304)
  • Surface : scratch-resistant powder coating with antibacterial protection
  • Version : left and right
  • Colour : White
  • Loading : max. 175 kg

Downloads

Technical Specifications

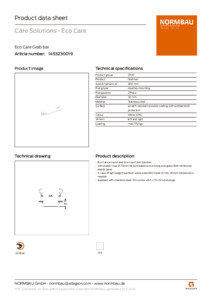

Product data sheet
Fixing instruction and directions for use

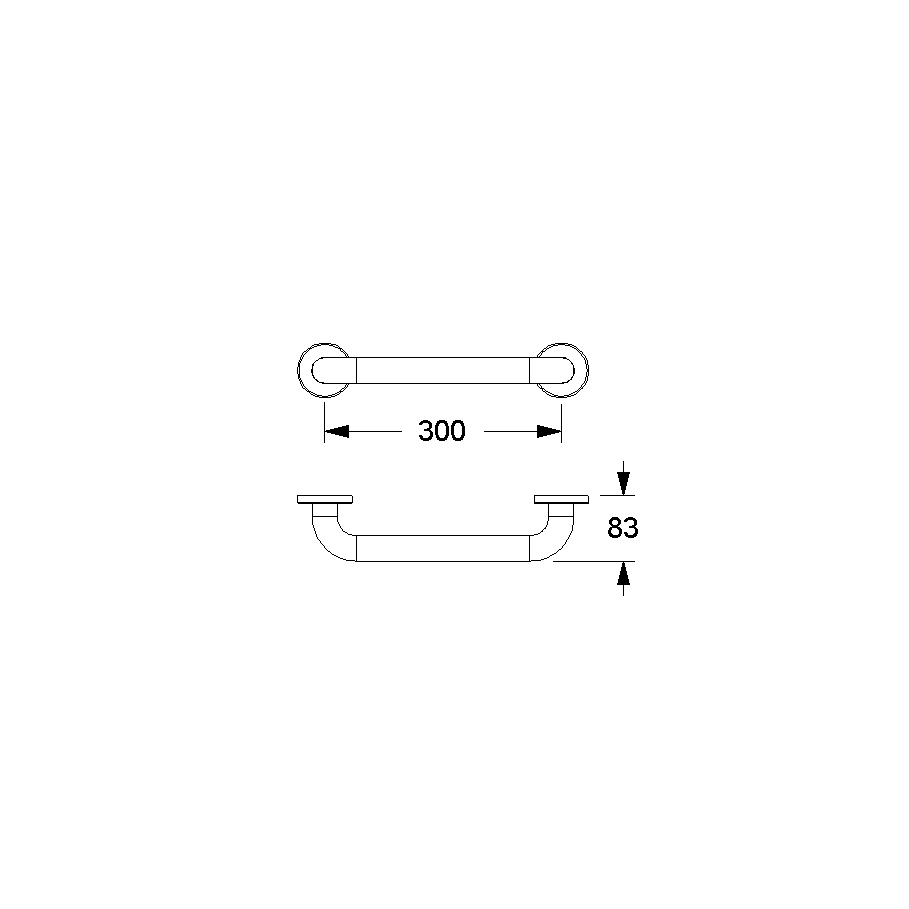

Technical Drawing

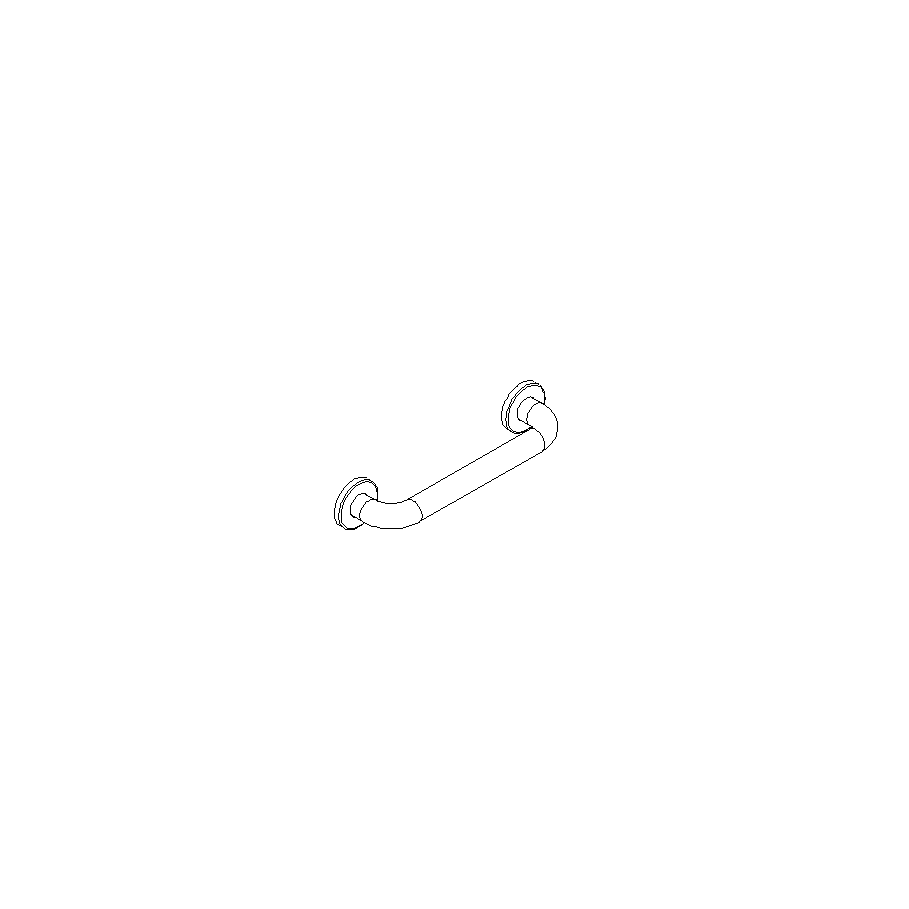

Isometric drawing

Images

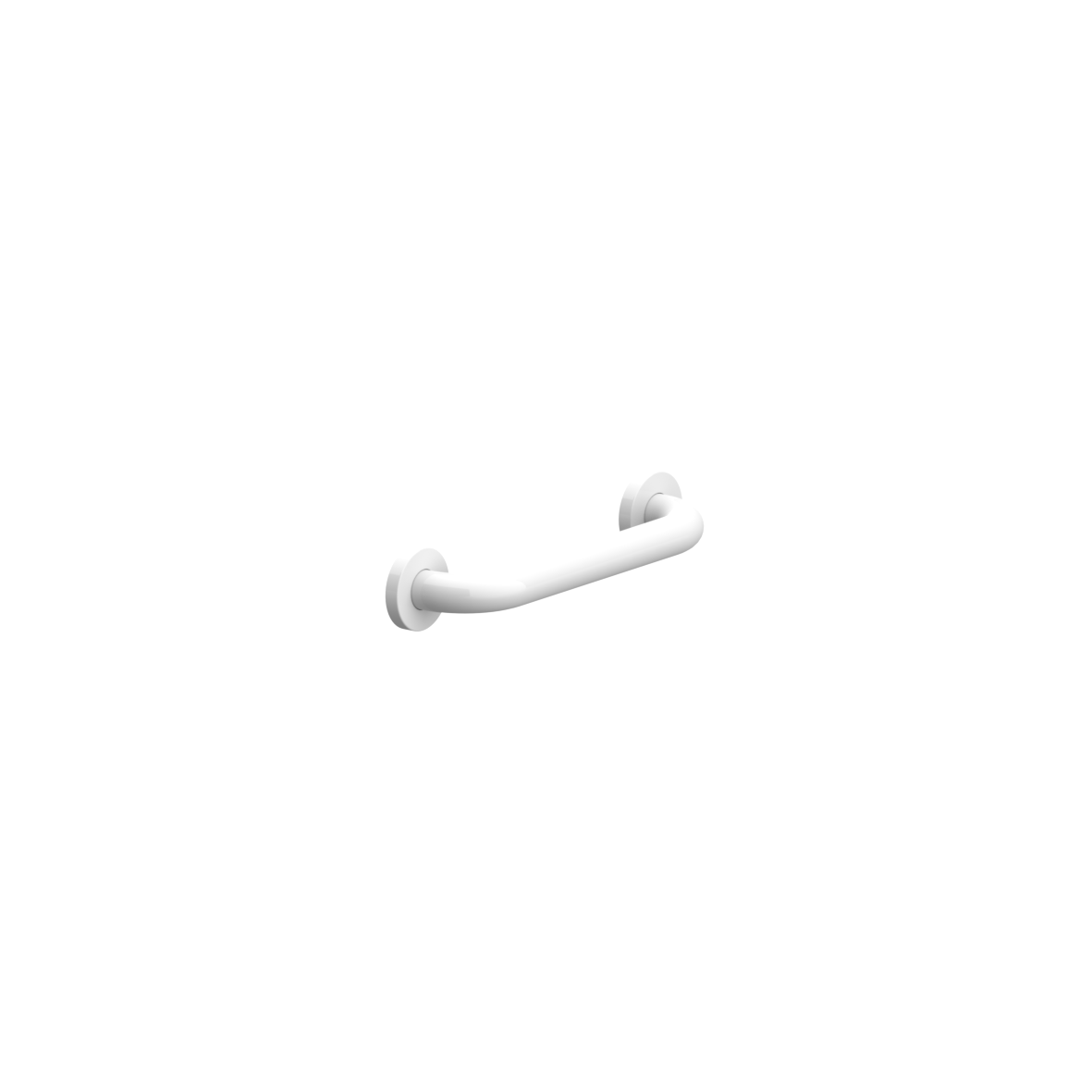

Product image
