Eco Care Floor support,
retrofittable (750 mm), L = 566 mm, White
€70.00*
*Prices excl. VAT
Article number: 1449220019
Downloads
Technical Specifications
Product data sheet
Fixing instruction and directions for use

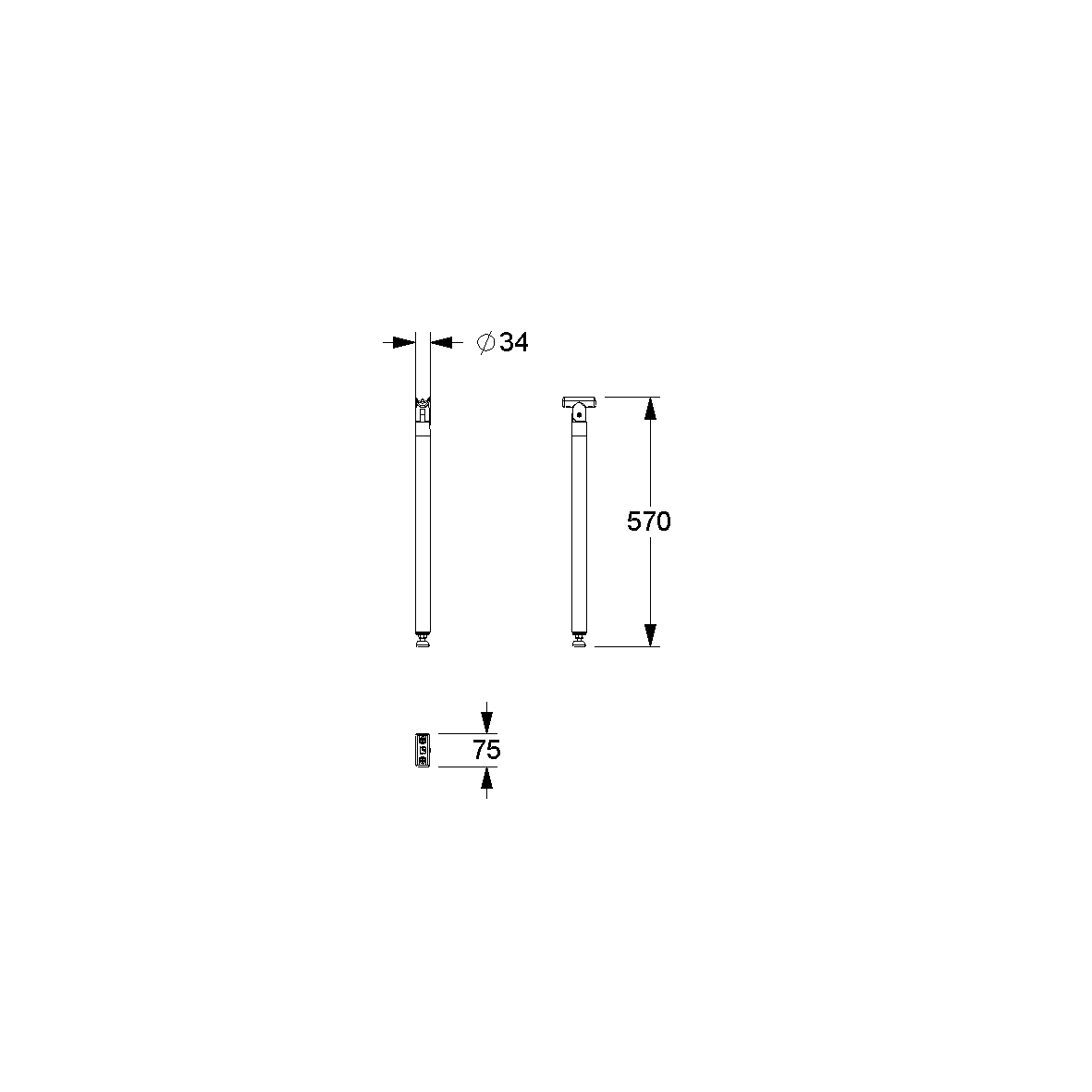

Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Eco Care as solid and low-cost Care Solution
- for Eco Care Lift-up support rails
- with non-slip rubber buffers in colour black
- Floor support serves as a support in case of insufficient wall condition, thus the resulting forces on the wall fixing can be reduced
- Product category : Floor support
- Product version : retrofittable
- Product group : 3700
- Length : 34 mm
- Width : 76 mm
- Height : 566 mm
- Diameter : 34 mm
- Material : polyamide
- Surface : high gloss with antibacterial protection
- Colour : White
