Cavere Care Spare toilet roll holder,
for one roll, 18 x 83 x 190 mm, Cavere Metallic anthracite
€54.00*
*Prices excl. VAT
Article number: 7520220095
Downloads
Technical Specifications

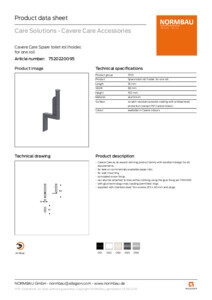

Product data sheet

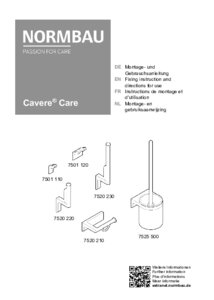

Fixing instruction and directions for use

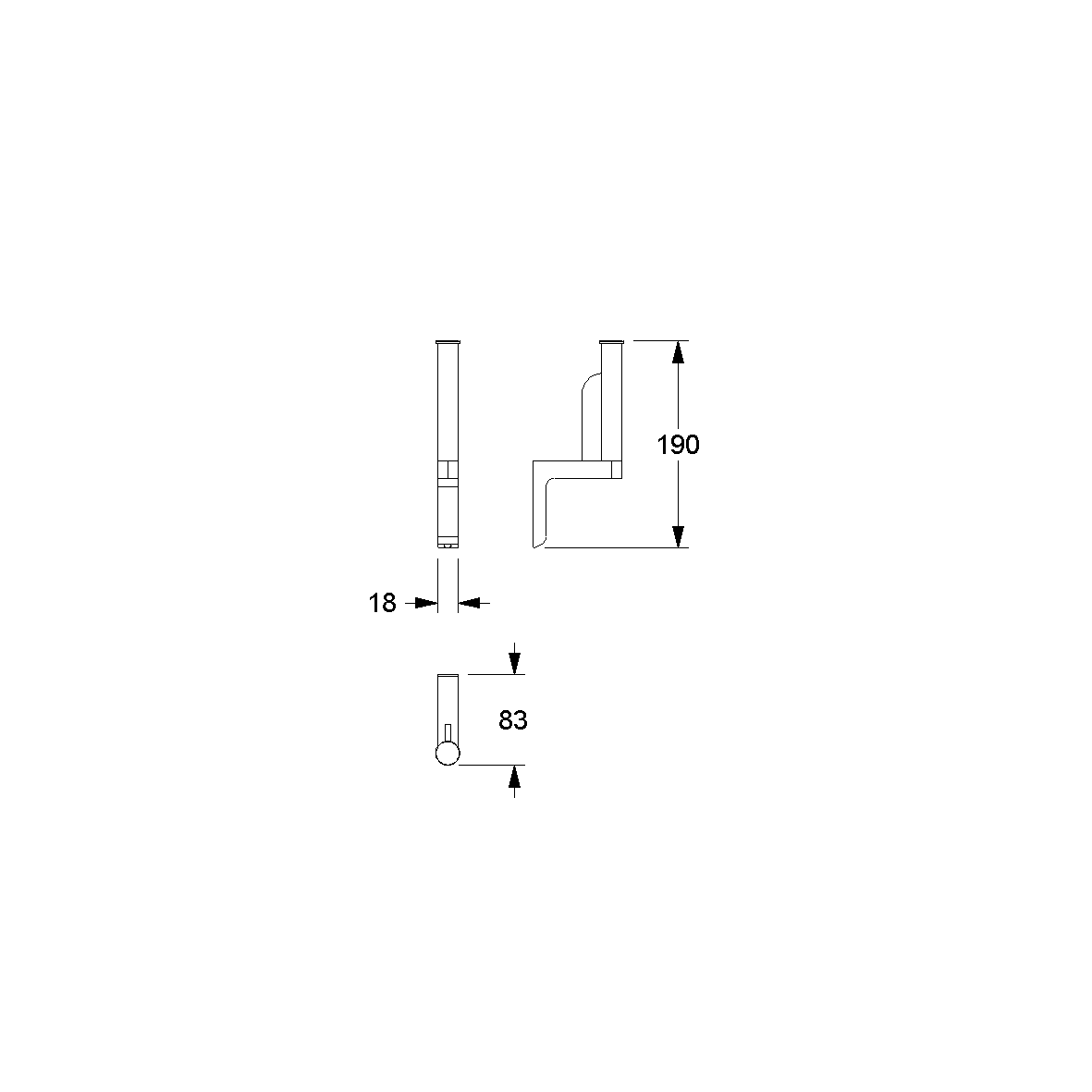

Technical Drawing

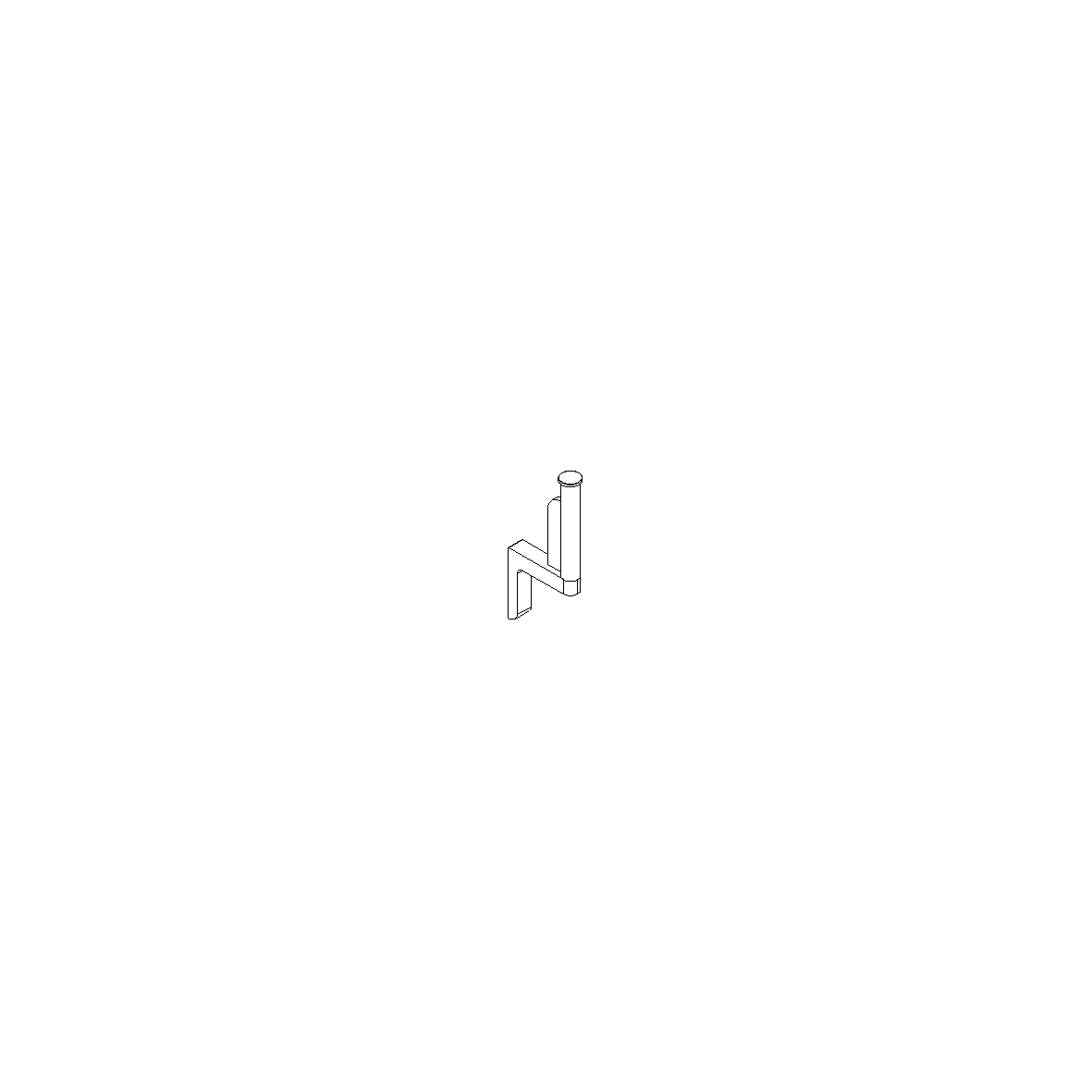

Isometric drawing
Images

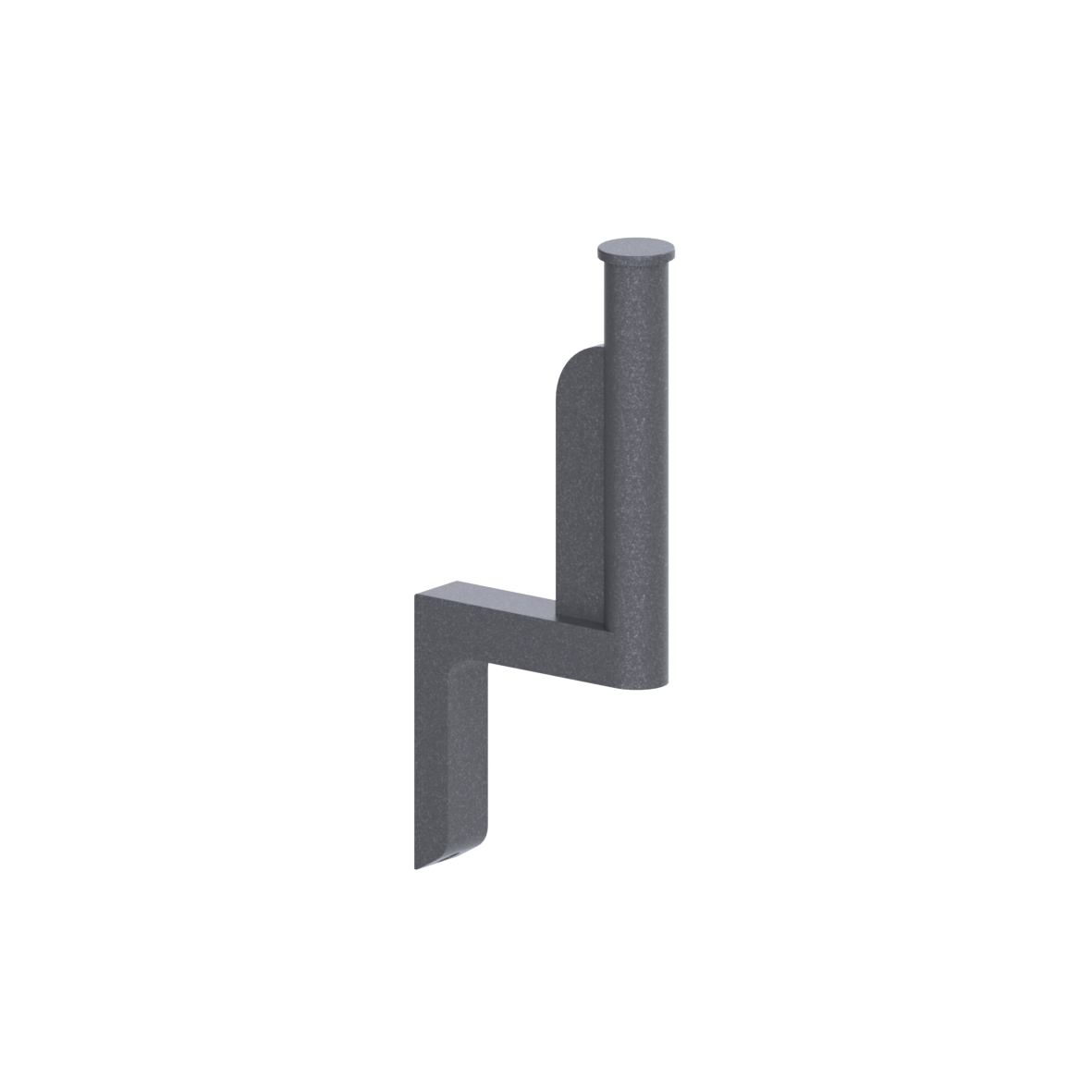

Product image
Situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- for take on commercially available paper rolls
- for wall mounting
- concealed screw fixing
- can also be attached to tiles without drilling using the glue fixing set 7100006
- with glue technology max. loading permitted: 4kgs
- supplied with stainless steel Torx screws Ø 5 x 60 mm and plugs
- Product category : Spare toilet roll holder
- Product version : for one roll
- Product group : 7010
- Length : 18 mm
- Width : 83 mm
- Height : 190 mm
- Material : aluminium
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Colour : Cavere Metallic anthracite
- Colours available : available in Cavere colours
