Cavere Care Shower handrail,
with movable shower handrail, 900 x 1200 mm, single-point mounting, Cavere Carbon black
€482.00*
*Prices excl. VAT
Article number: 7485091091
Downloads
Technical Specifications

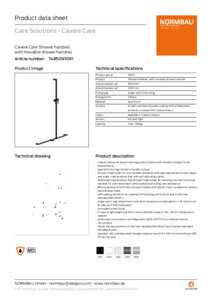

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Detail image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- ergonomic by trigonometric handle contour
- Shower head holder for one-handed operation with easy adjustment to any height and angle, maintenance-free with self-adjusting clamp
- Additional maintenance-free shower head holder for hooking onto the horizontal handrail for optimized reach while seated and during care assistance
- Mounting cone of both hand shower holders with plastic insert, suitable for various hand shower types
- with sealing elements for sealing of the drilling points according to German standard DIN 18534-1
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Shower handrail
- Product version : with movable shower handrail
- Product group : 7000
- Axle dimension a2 : 900 mm
- Axle dimension a3 : 1200 mm
- Fixing points : 3 St.
- Fixing type : single-point mounting
- Material : aluminium
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Version : left and right
- Colour : Cavere Carbon black
- Colours available : available in Cavere colours
- Loading : max. 150 kg
Tender specification
ausschreiben.de
BIM data
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
normbau@allegion.com
