Cavere Care Shower handrail,
750 x 750 mm, Cavere Carbon black
€334.00*
*Prices excl. VAT
Article number: 7484075091
Downloads
Technical Specifications

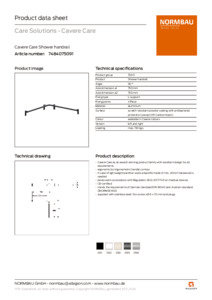

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- ergonomic by trigonometric handle contour
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product group : 7000
- Axle dimension a1 : 750 mm
- Axle dimension a2 : 750 mm
- Fixing points : 4 St.
- Fixing type : L-support
- Material : aluminium
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Version : left and right
- Colour : Cavere Carbon black
- Colours available : available in Cavere colours
- Loading : max. 150 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
