Cavere Care Shower curtain rail,
with curtain rings, I-shaped, L = 1000 mm, Cavere Metallic anthracite
€134.00*
*Prices excl. VAT
Article number: 7382220095
Downloads
Technical Specifications

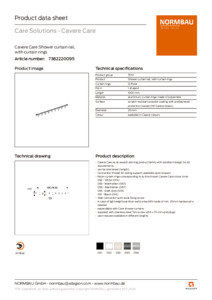

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- can be shortened (length)
- Connection thread for ceiling support available upon request
- Nylon curtain rings corresponding to to the chosen Cavere Care colour tone: 092 - White (019) 093 - Manhattan (067) 096 - Manhattan (067) 095 - Dark Grey (018) 091 - Black (016)
- Wall connection with axial fixing screw
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with Care shower curtains
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- upon request available in different lenghts
- Product category : Shower curtain rail
- Product version : with curtain rings
- Product group : 7010
- Length L : 1000 mm
- Diameter : 20 mm
- Form : I-shaped
- Curtain rings : 12 St.
- Material : aluminium
- Material addition : curtain rings made of polyamide
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Colour : Cavere Metallic anthracite
- Colours available : available in Cavere colours
