Ascento Stool,
548 x 437 x 623 mm, Dark grey
€334.00*
*Prices excl. VAT
Article number: 8750030018
- Ascento as Modular Seating Solution, expandible and combinable
- ergonomic formed seat with rounded outer edges
- upper extended bow arms that serve as as grab rails
- with non-slip rubber buffers in colour black
- Product category : Stool
- Product group : 8700
- Length : 548 mm
- Width : 437 mm
- Height : 623 mm
- Wide seat surface : 412 mm
- Depth of the seat surface : 422 mm
- Material : Polypropylene
- Material addition : Frame made of stainless steel, material No. 1.4301 (A2 AISI 304)
- Surface : matt
- Colour : Dark grey
- Colours available : available in Dark grey (018) and White (019)
- Loading : max. 150 kg
Downloads
Technical Specifications

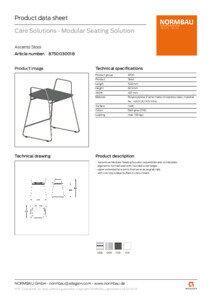

Product data sheet

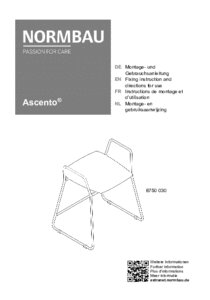

Fixing instruction and directions for use

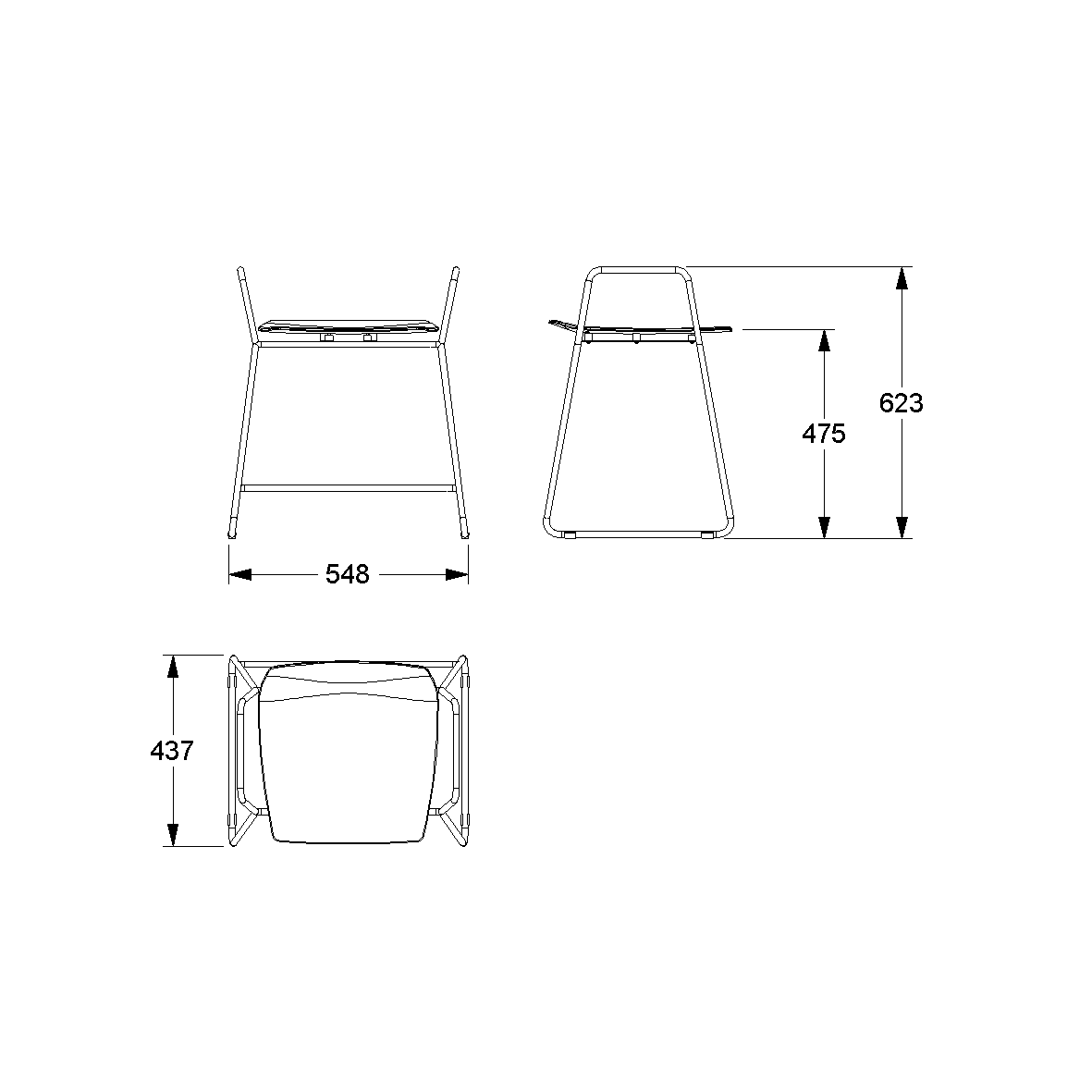

Technical Drawing

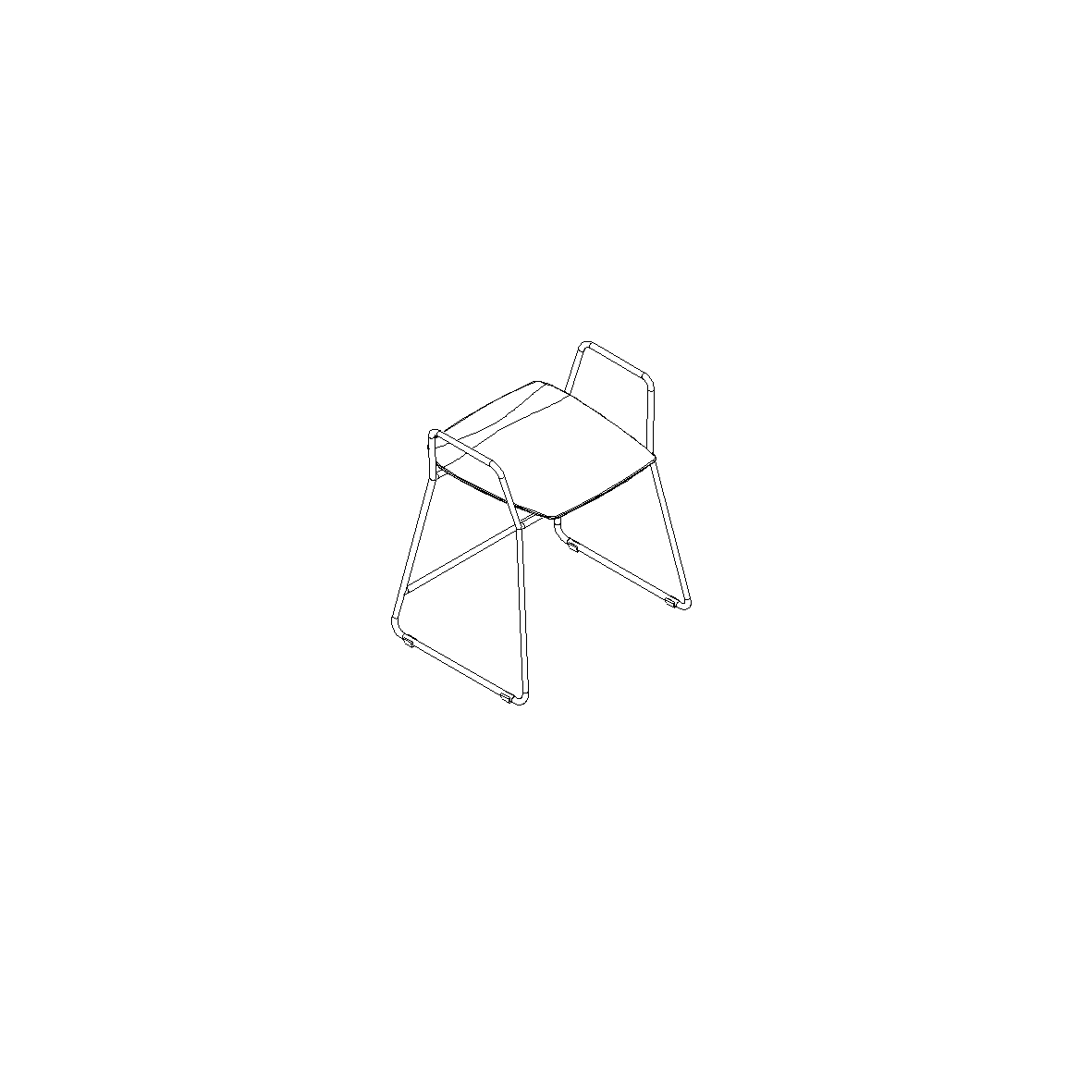

Isometric drawing
Images

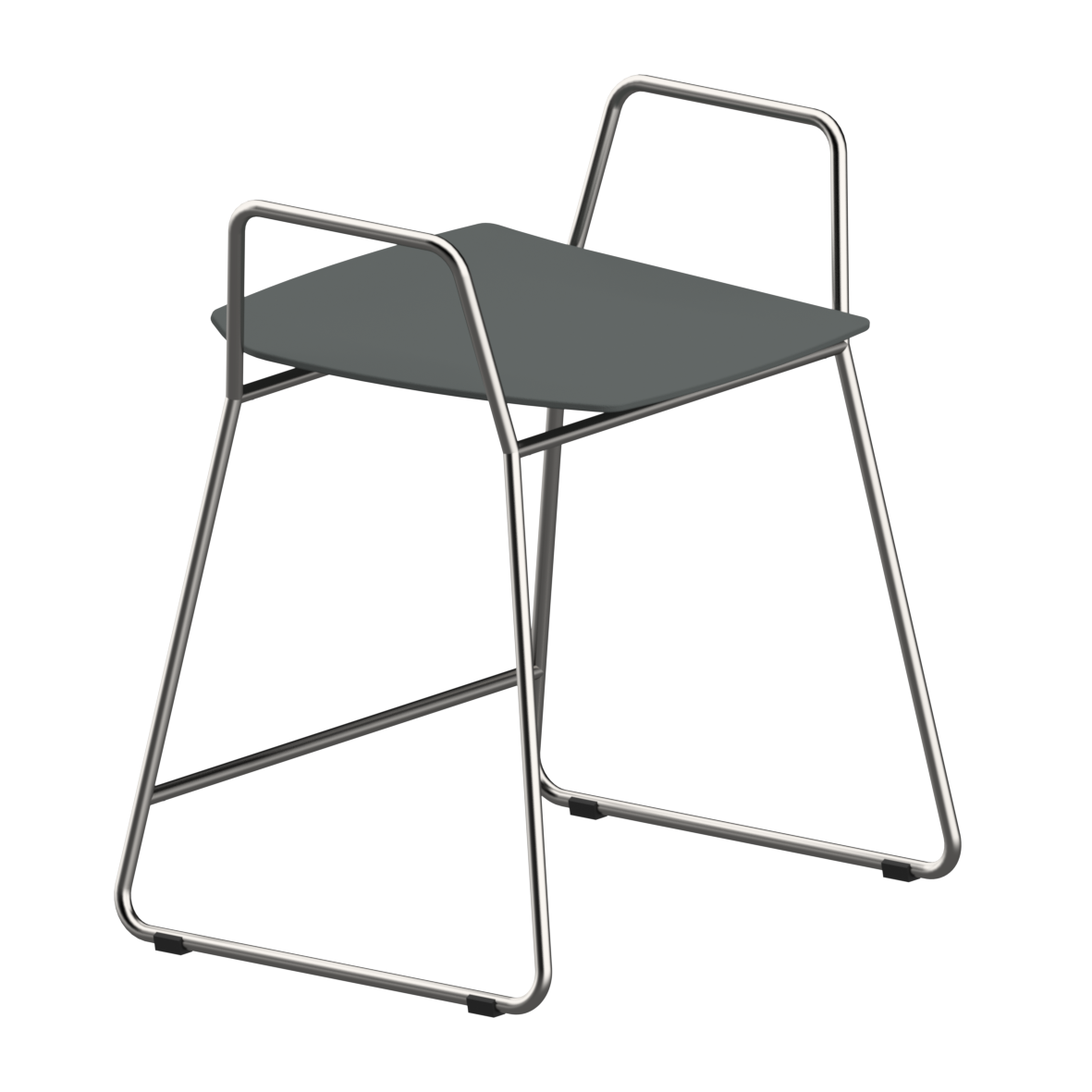

Product image
Situational image
Partial situational image
Overall download
ZIP file
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
